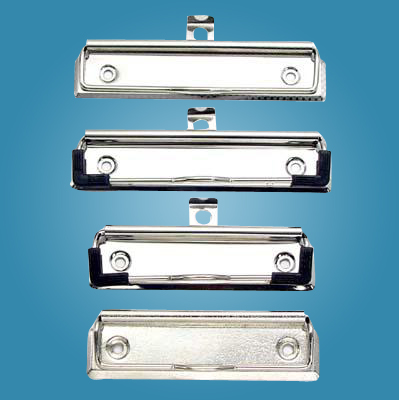

100mm wire clip without hanger & corner (Measurment:mm) |
|||||
|
Reference Number |
Hanger & Corner |
Base Width |
Base Length |
Mount Hole Space |
|
|
HP-WL001 |
Without |
29 |
100 |
73 |
|
|
HP-WL002 |
Hanger only |
29 |
100 |
73 |
|
|

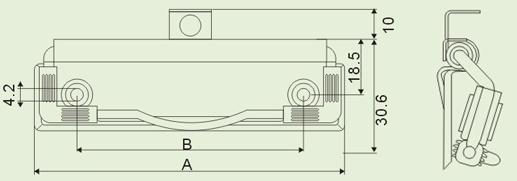

ITEM NO |
Specifications |
A |
B |
PATTERN |
|
C30 - 100 - ABF |
Bright |
70mm |
73mm |
|
Nickel plated clip, to be secured with 2 rivets. With rubber corners
Rivet hole(RH): diameter 4.2mm
RH-distance: 73mm (width 100mm)
Capacity: 10mm
Packing: 500pcs/ctn
Gross weight carton: 52F 12.8kg/ 51F 15.0kg
